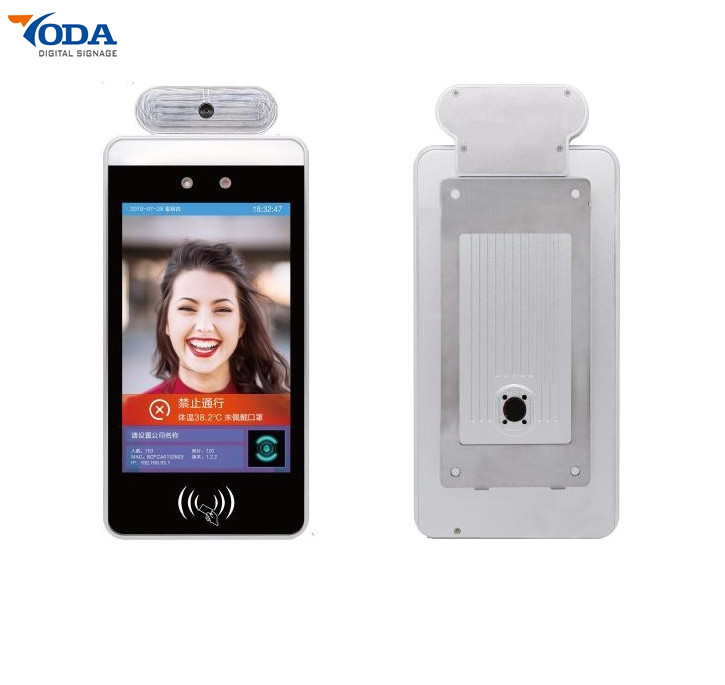

New Face Recognition Thermometer Electronic Temperature Measurement Thermal Imaging
Details of product:
1. Voice prompt function, illegal entry infrared alarm, guard against illegal entry or irregular passage.
2. Various languages, various versions may be available, and the multifunction is suitable for all kinds of places.
3. Reverse opening gate alarm.
4. Standby all day long, no worry about Lifespan.
5. Explosion-proof glass, protecting passerby and LCD panel.
6. Support wearing face mask recognition and temperature detection simultaneously.
7. Support the access of external QR code scanner, ID card /IC card reader.
8. Support USB playback, support hot plug, content update convenient and fast.
| Product | 8inch temperature measurement face recognition terminal |
| CPU | RK3288,2G memory,8G storage(RK3399 optional) |
| Operating system | Android 5.1.1 |
| Display Screen | 8inch IPS LCD |
| Resolution | 1280*800 |
| Camera | 2MP pixels,1080P,wide dynamic support |
| Appearance of the material | Aluminum alloy fuselage |
| Recognition technology | Support mask recognition + infrared array thermal imaging temperature detection |
| Face Angle | 30 degrees left or right, 30 degrees up or down |
| Horn | Support for 2.5W /4R speakers |
| Face database | ≦ 20000 |
| Switching card | Optional IC card, second generation ID card reader |
| Main control board interface | DC input * 1 USB * 2, RJ45 * 1, serial port * 2, relay * 1, Wigan * 1, reset switch * 1 |
| Temperature measurement range | 25 ℃ ~ 45 ℃ |
| Temperature measuring distance | 0.5M |
| Temperature measurement accuracy | ±0.2℃ (10℃-26℃) |
| Operating temperature and humidity | -20~60℃, 10~90% relative humidity, no condensation |
| Weight | 2.7KGS |
| Equipment size | 271.24 * 128 * 21.48 (mm) |
| Product | Gateway |
| Unlock time | 0.2s |
| 3 passage speed | 35 people/min |
| Channel width | ≤800mm |
| Input voltage | 100V~240V |
| Driving voltage | Driving voltage: 24V |
| Environment temperature | -25~+70℃ |
| Power | 35W |
| Open signal input | 12V dry contact |
| Net weight | Single movement: 55KGS Double movement: 85KGS |
| Size | 1200 * 185 * 980 mm |
Real-picture
Product's details
Application
FAQ
Q:Are you a manufacturer or Trading company?
We are a professional Advertising Display and LCD Touch Screen manufacturer since 2016 with consistent quality control and very positive & approving customer feedback.
Q:What are your advantages?
A:We have our own ERP systems : Shorten lead times at low cost with responsive production planning.
Q:What is the company's business philosophy?
A:Quality first, service first.
Q:Does your company support customization?
A:Yes,we support customization.Customizable festures include,appearance,camera,brightness,logo,NFC,scanner,printer,discrete
graphics,wheels,color,etc.
Q:What is the shipping package?
A:Strong bubble bag+carton+wooden case/3mm Honeycomb box. Transport breakage rate is less than 1%.
Q:How long is your delivery time?
A:The production time of conventional machines is 7-15 working days.
Q:How long is the warranty period of the product?
A:The regular warranty period is 1 year. If you need a longer warranty, please contact our sales engineer.
|
|
Thermal Imaging Multi Function Digital Signage Electronic Temperature Measurement Images
|
